- 【High Resolution】7" HDMI/VGA/DVI Video Input, Physical Resolution: 1024 (H) x 600 (V) WVGA; Supported PC Resolution: 640 x 480 ~ 1920 x 1080; Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p; Dot Resolution: 3072 x 600 = 1,843,200 (dots); Brightness: 600 cd/m² Contrast Ratio: 700:1 Viewing Angle: 150° Horizontal, 145° Vertical; Response Time (Tr/Tf): 10/15ms (Typ.) Touchscreen Interface: USB; Operating Voltage Range: DC 10V ~ 35V
- 【Compatibility】The portable monitor can be connected to lots of devices with HDMI/VGA/DVI ports including computers, laptops, Mac, and is rugged for industrial integration and automation projects. It also works as CCTV Security and many systems. Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C) Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C) MTBF (Mean Time Between Failures): 55,000 Hours Dimension (mm): 196W x 121.5H x 35D Weight (lb): 1.54
- 【Multi-Purpose】Connect it with your device via HDMI/VGA/DVI cable, then power the monitor via the included DC cable. The function of touchscreen functions when the monitor is connected with your computer/laptop/system via USB cable.
- 【VESA】Slim and Lightweight monitor with a sleek and metallic finish. The 7 inch HDMI, VGA, DVI monitor can be wall mounted via 50mm×50mm VESA ports or settled on the desktop with the stand.

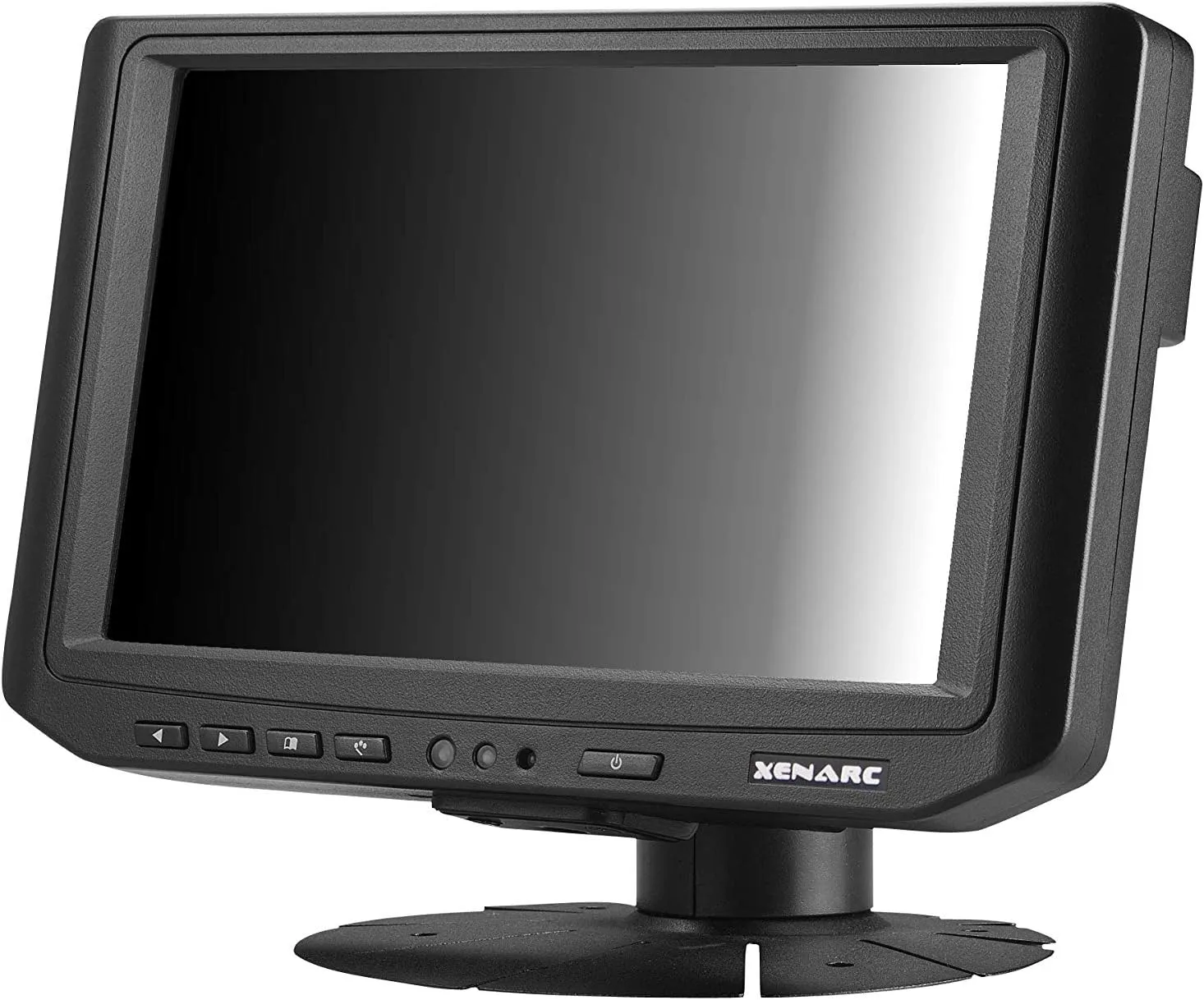

Xenarc Technologies Corp. extended the versatility of its iconic 700 series line of displays with the introduction of a 7" LED LCD screen with HDMI input and Touchscreen. This unit incorporates our latest LED backlight technology for increased brightness and has an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used though out the unit for improved stability and durability especially in extreme temperature conditions. This versatile product incorporates the innovation of our HDMI 7" models along with a 5-wire resistive Touch-Screen panel. Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. Screen Size: Diagonal 7" (16:9) Physical Resolution: 800 (H) x 480 (V) WVGA Supported PC Resolution: 640 x 480 ~ 1920 x 1080 Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p Dot Resolution: 2400 x 480 = 1,152,000 (dots) Brightness: 600 cd/m² Contrast Ratio: 700:1 Viewing Angle: 150° Horizontal, 145° Vertical Response Time (Tr/Tf): 10/15ms (Typ.) Touch Screen Interface: USB port Operating Voltage Range: DC 10V ~ 35V Power Supply: DC 12V Power Consumption: <10W Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C) Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C) Dimension (mm): 196W x 121.5H x 35D Weight (lb): 1.54
